PTFE (TEFLON)® ELECTRICAL SLEEVINGS

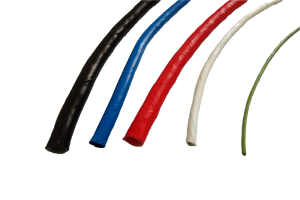

PTFE (TEFLON)® SLEEVES

Sizes

: 0.50mm WT upto 9.00mm WT

Temperature

: -65oC to +260oC

Approvals

: LCSO

MFG as per

: JSS-51038 (MIL-W-16878)

Advantages

: Resistance to fire, chemicals, acids, sunlight, moisture and corona.

Petrorays brings to you superior quality of ptfe sleeves.

These sleeves are available in different sizes.

These ptfe sleeves are manufactured as per the international quality standards.

Sleevings are manufactured from PTFE tape spiral wrapped & fused process.


PTFE electrical sleeving meets the performance requirements of JSS 54802 / BS 2848 type 6 specifications.

  • Working Temperature -65oC to 200oC.
  • Better mechanical and electrical properties.
  • Resistance to solder iron damage.
  • Resistance to most of the Chemicals.
  • Resistance to fire, sunlight, moisture.
  • Corona resistance.
  • Higher Reliability.
  • Highly Resistative to U.V Rays.
  • Non contamination, non-toxic and bio compatible.
Red
Yellow
Blue
Brown
Violet
Black
Orange
Green
Gray
Pink
INNER DIAMETER (ID) Nominal (mm)
WALL THICKNESS Nominal (mm)
0.50
0.25
0.75
0.25
1.00
0.30
1.50
0.40
2.00
0.40
2.50
0.40
3.00
0.40
3.50
0.50
4.00
0.50
5.00
0.50
6.00
0.50
7.00
0.50
8.00
0.50
9.00
0.50
10.00
0.50
11.00
0.50
12.00
0.50
